Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor
  • Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor

Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor

Place of Origin China
Brand Name Huaxin or OEM
Certification CE, ISO9001
Model Number Outdooor Fiber Optic Cable GYTY
Product Details
Highlight:

24 core single mode fiber optic cable

,

24 core single mode fiber cable

Payment & Shipping Terms
Minimum Order Quantity
2000M
Price
$35
Packaging Details
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation
Delivery Time
7-14work days
Payment Terms
L/C,T/T
Supply Ability
500km PER DAY
Product Description

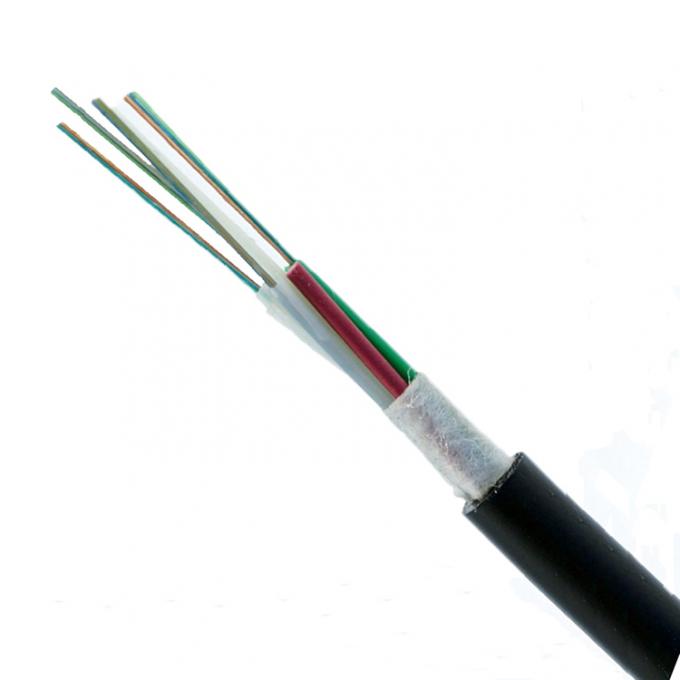

Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor

Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor 0

GYTY No Metal Fiber Optic Cable
The structure of gyfxty optical cable is to insert 250 micron optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a piece of fiberglass reinforced plastic (FRP). The loose tube (and filler) is twisted around the central strengthening core into a compact and round cable core. The gaps in the cable core are filled with water-blocking filler. A layer of polyethylene sheath is extruded outside the cable core to form a cable, which is widely used in pipelines and overhead operations.

Packaging & Delivery

High-quality, environmentally friendly fumigation-free wood and plywood roll optical cable packaging ensures that your goods are not contaminated by any harmful gases during transportation, protecting your goods from moisture, shock and damage. Your optical cable will reach its destination safely while contributing to environmental protection!

Main Features

1. Non-metallic structure providing excellent anti-electromagnetism
2. Anti-thunder and anti-static performances
3. Reinforced with glass or aramid yarn
4. PE outer sheath

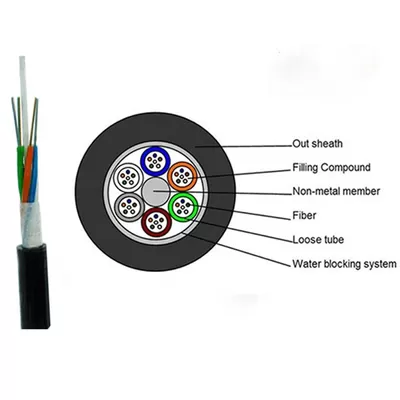

Structure & Technical Specifications

Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor 1
Cable Type
Fiber
Count
Cable
Diameter
/mm
Cable Weight kg/km
Tensile Strength Long/
Short Term N
Crush Resistance Long/Short Term N/100mm
Minimum Bending Radius Long/Short Term
Storage
temperature
(°C)
GYTY 2-60
2-60
9.8
65
600/1500
300/1000
10D/20D
-40+60
GYTY 62-72
62-72
10.5
85
600/1500
300/1000
10D/20D
-40+60
GYTY 74-96
74-96
14.5
145
600/1500
300/1000
10D/20D
-40+60



Mark
    According to customer requirement



Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor 2

Factory & Production

Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor 3

Certifications

Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor 4

Exhibitions

Customization GYTY 24 Core Single Mode Fiber Optic Cable High Rank Cable for Outdoor 5

FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China,
2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the
bulk production. It depends on the order quantity.

4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
5.Do you have warranty for your products?
Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
