OEM Outdoor Fiber Optical Cable JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables
  • OEM Outdoor Fiber Optical Cable JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables
OEM Outdoor Fiber Optical Cable JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables

OEM Outdoor Fiber Optical Cable JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables

Place of Origin China
Brand Name Huaxin or OEM
Certification CE,TLC,ISO9001
Model Number Outdoor Fiber Optic Cable JET
Product Details
Highlight:

oem outdoor fiber optical cable

,

oem om3 outdoor fiber

,

g652d om3 outdoor fiber

Payment & Shipping Terms
Minimum Order Quantity
2000m
Price
$0.25/M
Packaging Details
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation
Delivery Time
7-14work days
Payment Terms
L/C,T/T
Supply Ability
500KM/DAY
Product Description

High Quality OEM Outdoor Fiber Optic Cable Factory Price JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables

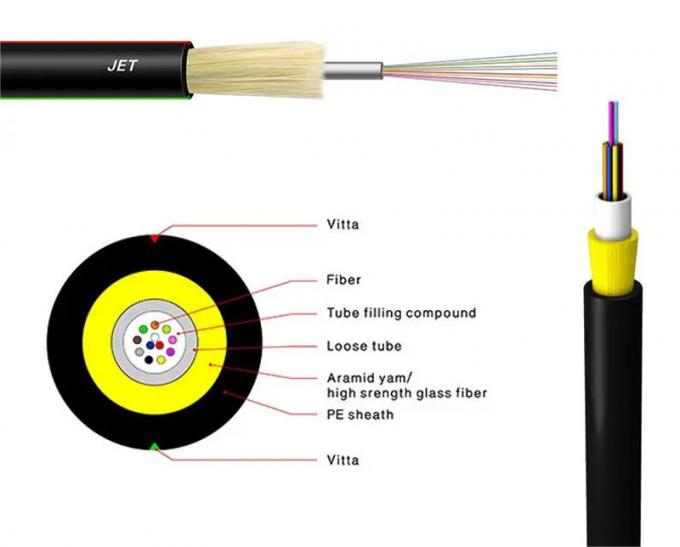

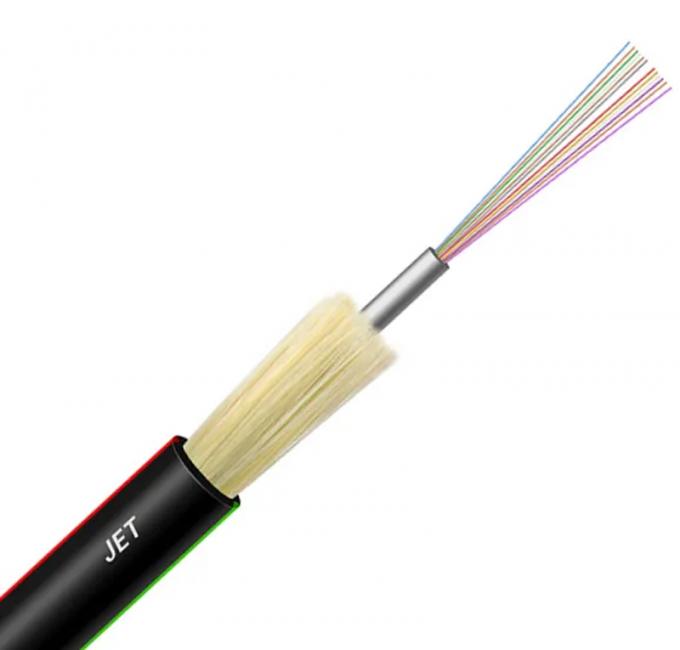

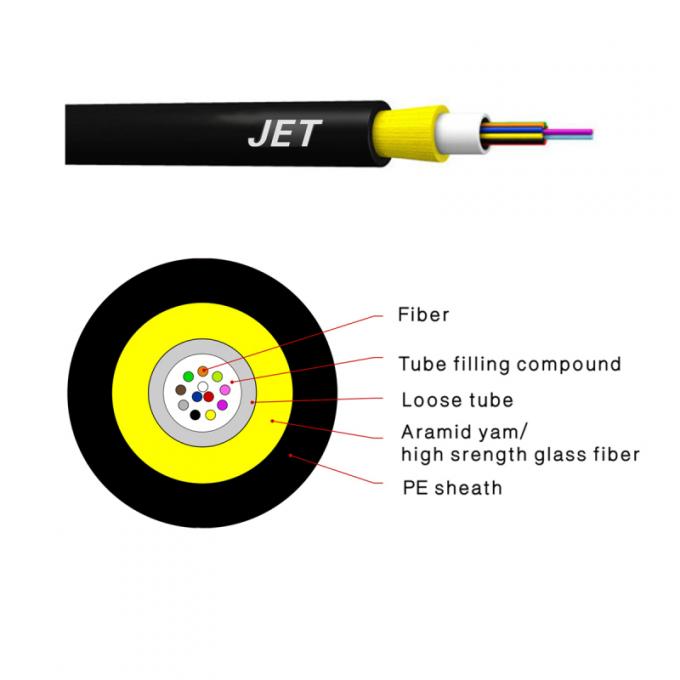

The fibres, 250um, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. Thetubes are filled with a water-resistant filing compound. A layer of aramid yarn is applied around the cable core as additionastrength member. Then, the cable is completed with a black or color HDPE sheath.



Features
•Good mechanical and temperature performance
•Aramid reinforcing elements provide excellent tensile properties for fiber optic cables.
•Special tube filling compound ensure a critical protection of fiber

•High optical fiber assembly density, small cable diameter and light weight make it the best choice for air blowing.

•Applicable for short span aerial installation



Requirement for Order


(1) Fiber sort: Single mode:G652D,G657A1, G657A2, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) Jacket material: PE,LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.
Fiber optical  Characteristic (after cable)
Fiber type Attenuation Bandwidth Effective modal bandwidth 10 Gb/s Link Length
Conditions 1310/1550nm 850/1300nm 850/ 850nm 850nm
Typical Maximum Typical Maximum 1300nm
Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m
G652D 0.5/0.4 0.6/0.5 / / / / /
G657A1 0.5/0.4 0.6/0.5 / / / / /
G657A2 0.4/0.3 0.5/0.4 / / / / /
G657B3 0.5/0.4 0.6/0.5 / / / / /
62.5/125 / / 3.5/1.0 3.5/1.5 ≥160/500 / /
50/125/ / / 3.0/1.0 3.5/1.5 ≥200/500 / /
OM1
50/125/ / / 3.0/1.0 3.5/1.5 ≥500/500 / /
OM2
OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150
OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300
OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500



Industry-specific attributes

Brand Name
Huaxin or OEM

Other attributes

Model Number
JET
Type
Outdoor Fiber Optic Cable
Place of Origin
Shandong, China
Number of Conductors
6
Product name
JET Outdoor Cable
Application
Outdoor Using
Strength Member
Steel
Fiber Count
2-24 Cores
Jacket Color
Black Color
Fiber Model
G652D/G657A1/G657A2
High Lihgt
Fast Transmission
Jacket Material
PE/MDPE/HDPE
Packaging Details
wooden drum/wooden reel
Warranty
10 Years

Packaging and delivery

Selling Units:
Single item
Single package size:
20X20X15 cm
Single gross weight:
2.000 kg

Lead time

Quantity (meters) 1 - 2000 > 2000
Lead time (days) 7 To be negotiated


Customization options

Customized logo (Min. order: 50,000 meters)



High Quality OEM Outdoor Fiber Optic Cable Factory Price JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication CablesHigh Quality OEM Outdoor Fiber Optic Cable Factory Price JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication CablesHigh Quality OEM Outdoor Fiber Optic Cable Factory Price JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication CablesHigh Quality OEM Outdoor Fiber Optic Cable Factory Price JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables

Packaging & Shipping

Outdoor Optical Fiber Cable All Dielectric Self-Supporting ADSS Cable





OEM Outdoor Fiber Optical Cable JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables 5





Factory & Production



OEM Outdoor Fiber Optical Cable JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables 6



Certifications



OEM Outdoor Fiber Optical Cable JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables 7



Exhibitions



OEM Outdoor Fiber Optical Cable JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables 8

FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China.
2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.
4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
5.Do you have warranty for your products?
Yes,-There are 10 years for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
