FTTH cable is the ideal choice for fiber optic home project, its flat and slim body is perfectly suited to the wiring environment after home renovation. Whether it is from the hallway weak power box through the interior, or along the skirting, door frame edge laying, can be easily hidden out of sight, to avoid cutting large holes in the wall to damage the decoration. For the renovation of old neighborhoods or new home renovation projects, this “minimally invasive” installation feature reduces interference with residents' lives and allows fiber optic networks to be silently integrated into the home environment.
Product Features
1. Integrated connection design, eliminating signal leakage: The connector of FTTH fiber optic cable and fiber optic cable adopts heat fusion integrated molding process, the connection seamlessly fits, which can effectively block the interference of external stray light, and at the same time, avoid the leakage of internal optical signals. This design improves the stability of the optical signal by 30% during transmission, which is especially suitable for high-definition IPTV and video call scenarios that require high signal purity.

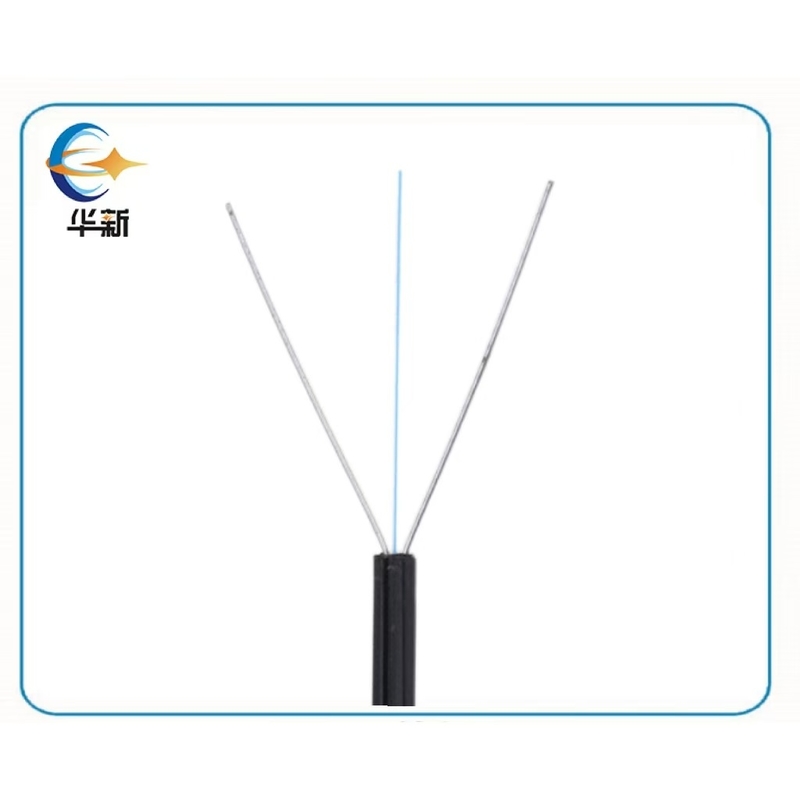

2. Strippable sheath structure simplifies terminal handling: The outer sheath is designed with a special easy-to-peel design, which can be peeled off by hand without special tools to reveal the inner optical fiber and reinforcing core. The stripping process will not damage the fiber optic coating, which not only reduces the difficulty of the installer's operation, but also reduces the risk of fiber breakage due to improper use of tools, making terminal splicing or connector installation more efficient.
3. Anti-rodent and ant biting formula, adapt to the home environment: for the possible infestation of rodents and ants in the home environment, the sheath material is added with a special anti-biting component, which can effectively resist the gnawing of rodents and insects. Experimental data shows that fiber optic cables treated with anti-bite treatment are 80% less likely to be damaged in areas where rodents and ants are active, dramatically reducing network outages caused by biological damage.
Product Advantages
1. Enhance the home network experience and reduce signal fluctuations: the integrated connection design keeps the jitter rate of signal transmission within 0.01%, ensures no lag in 4K video playback and low latency in online games, and reduces user complaints by 50% compared to traditional fiber-optic cables, which significantly improves the satisfaction with the use of the home network.
2. Reduce the threshold of installation, suitable for a variety of construction personnel: peelable sheath design allows renovation masters, property electricians and other non-professional network installers can also easily complete the optical cable processing, without additional training to start, broadening the scope of choice of construction personnel, indirectly accelerating the speed of fiber to the home project.
3. Reduce the cost of home maintenance, extend the stable operation cycle: anti-rodent and ant corrosion characteristics of the fiber optic cable in residential, villa and other scenarios to extend the trouble-free operation time to more than 5 years, reducing the maintenance costs and network disruption caused by line damage, especially for low-rise homes and houses with courtyards.
Specifications
|
|
Specification
|
3*2 Butterfly Flat Type, 5*2mm Aerial Self-support Type |
|
Fiber count
|
1/2/4F
|
<0.2dB(Typical), 0.3dB (Max) |
|
Fiber
|
Out diameter(±5μm)
|
250
|
1310nm/1490nm/1550nm |
|
|
Self supporting element
|
1.0mm Steel wire
|
G657A1/A2 |
|
Tensile element
|
2*0.4mm Steel wires
|
|
|
Sheath material
|
LSZH
|
|
|
Color
|
Black
|
|
|
Out diameter
|
5.1(±0.2)*2.0(±0.1) mm
|
|
|
Cable weight(kg/km)
|
22
|
|
