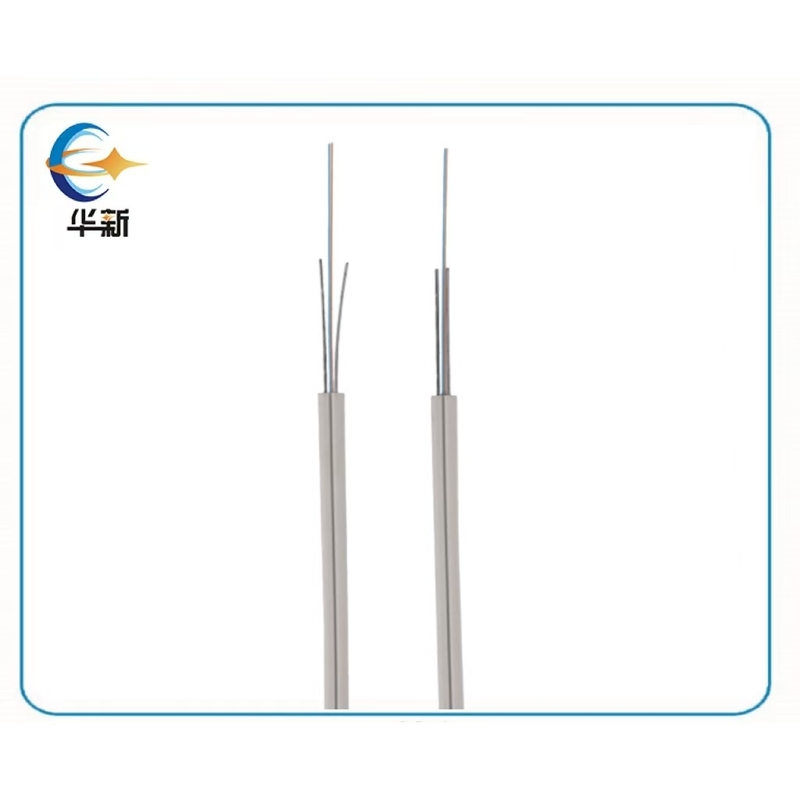

FTTH fiber optic cable skin line in the design of the full consideration of the process of entry into the home of a variety of mechanical challenges: reinforcing core using high-modulus FRP materials, can withstand 100N instantaneous tension, easy to deal with the hanging between the floor of the laying; at the same time, the fiber optic cable can withstand repeated bending (bending radius of ≥ 15mm is still maintained when the performance of the stability of the performance), even if crossing the gap between the door and window, around the beams and columns when the accidental extrusion, but will not affect the light! signal transmission. This toughness allows installers not to worry too much about the complexity of the wiring path, significantly reducing the difficulty of construction.
Product Features
1. Flat and slim structure, suitable for fine wiring: FTTH fiber optic cable skin cable adopts flat design, thickness is only 2-3mm, width is 5-6mm, it can easily pass through the small holes reserved in the wall, door and window gaps and inside the decorative lines, no need for large-scale destruction of the building structure, to meet the demand for fine wiring of the home, apartments and other scenarios.
2. Reinforced core design to enhance mechanical properties: built-in high-modulus FRP (fiber-reinforced plastic) reinforced core, tensile strength up to 100N, lateral compression resistance ≥1000N/100mm, and excellent flexibility, the bending radius can be as small as 15mm (static) and 30mm (dynamic) to cope with the complex path of laying the pulling and bending.
3. Layered protective sheath to adapt to environmental differences: the use of double-layer sheath structure, the outdoor section of the sheath with anti-UV (ultraviolet) additives, weathering temperature range - 40 ℃ to 70 ℃; indoor section of the low-smoke, non-halogen (LSZH) materials, low-smoke, non-toxic combustion, through the UL94 V-0 flame retardant certified, taking into account the outdoor weatherability and indoor safety.
4. Prefabricated end connectors to ensure connection accuracy: SC/UPC or SC/APC connectors are standardized at both ends, and the termination and testing are completed in a class 10,000 clean room, with insertion loss ≤ 0.3dB and return loss ≥ 50dB (UPC) / ≥ 60dB (APC), avoiding dust contamination and operational errors in on-site termination.
Product Advantages
1. Reduce installation cost and construction interference: Slim structure eliminates the need for large-area openings for in-home installation, reducing the damage rate to the decoration by more than 90% and reducing the cost of wall restoration; at the same time, the plug-and-play design shortens the installation time for a single household from 30 minutes to 10 minutes for traditional fiber-optic cables, dramatically increasing the amount of work completed by the construction team in a single day and reducing the cost of labor.
2. Enhance network stability and reduce maintenance frequency: low-loss transmission performance (attenuation coefficient ≤ 0.3dB/km) ensures that the Gigabit bandwidth is stable and meets the standard, and with high-precision connectors, the probability of signal interruption is reduced by 60%; the layered protection design extends the service life of fiber optic cables in humid, high temperature, ultraviolet irradiation, etc., to more than 20 years, which reduces the post-maintenance investment.
3. Adapt to multiple scenarios to meet long-term demand: from standardized wiring in new homes to the transformation and upgrading of old districts, from low-rise apartments to high-rise buildings, it can be flexibly adapted; it supports 10 Gigabit bandwidth transmission, which can meet the demand for upgrading the home network in the next 5-10 years to avoid wasteful repetitive wiring.
4. Ensure the safety of living, in line with environmental standards: the indoor section of low-smoke halogen-free sheath in the event of a fire, the concentration of toxic gases released is far lower than the traditional PVC materials, reducing the risk of asphyxiation of personnel; the entire material through the RoHS environmental protection certification, no lead, cadmium and other hazardous substances, in line with the modern family's high demand for health and safety.
Specification
|
|
Specification
|
|
Fiber count
|
1/2/4F
|
|
Fiber
|
Out diameter(±5μm)
|
250
|
|
|
Self supporting element
|
1.0mm Steel wire
|
|
Tensile element
|
2*0.4mm Steel wires
|
|
Sheath material
|
LSZH
|
|
Color
|
Black
|
|
Out diameter
|
5.1(±0.2)*2.0(±0.1) mm
|
|
Cable weight(kg/km)
|
22
|
Company Profile
Certificates
Exhibitions
Packaging and Transportation
FAQ
Q1. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can accept small orders.
Q3: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for
special ones.
Q4: How long is the guarantee of the product?
A: According to the type of product,We offer 1-3 years warranty to our formal products.
Q5: What about delivery time?
A: We need 1-3 days to handling the sample, and 5-15 days to process our normal goods.
Q6:How about the cable's quality ?
A: We guarantee that our products are ISO9001 standard compliant. We have a series of professional equipment and manufacturing
instruments to make sure reliable quality of our products.
Q7: How do l assure that you are a reliable supplier?
A: Our factory has dug in this industry for many years and sold to many countries in the world. If you are willing to verify that
through the phone or video, you are welcome at any time.
Q8: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum
quantity. Your satisfaction is our maximum motivation
